Alpna’s EAGLE

Sheet-fed Roller Coater Lines
  • Up to 10000 SPH
  • Advanced Penta Coat System for Precise Coating Control
  • Advanced AIR-KNIFE Attachment for Thin Paper 130 - 600 GSM
  • Near Zero Make - Ready Time
  • Pre - Pilling & Non - Stop Feeder Options
  • High Quality Components Combined with Excellent Workmanship
  • High Pile Feeding & Stacking for Higher Productivity

  • Various Configurations Available

Feeder Head

  • Independent lifting and forwarding suckers
  • High speed upto 12000 SPH
  • Rigid construction for longer life
  • Suitable substrate 80gsm to 500gsm
  • Classical time tested design

Air-Knife

  • Precise design.
  • Suitable for substrate 130gsm to 600gsm.
  • Pointed air-blast on substrate to avoid wrapping
  • Simple to set for ease of use

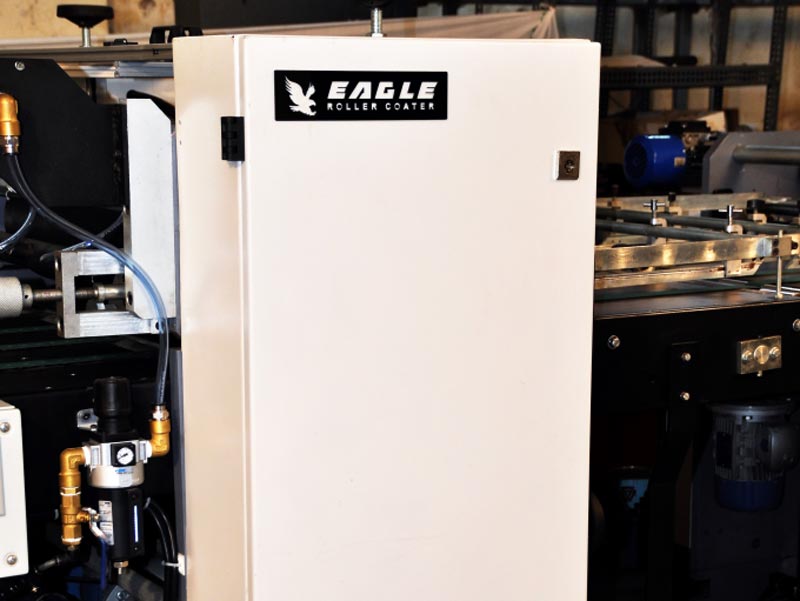

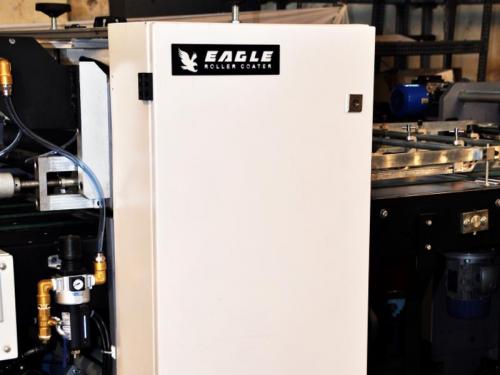

Control Panel

  • Intuitive and easy to use.
  • Speedo meter for speed indication.
  • Sheet counter.
  • Fault indication display.
  • Clear marking for easy understanding

Automatic Stacker

  • Heavy duty stacker.
  • Pneumatic Joggers.
  • Automatic table movement
  • Advanced Air-cushening feature for thin paper stacking.

Becker’s Feeder Pump

  • 100% oil-less operation
  • Low Noise operation.
  • Inlet filter included
  • Discharge silencer
  • Minimal maintenance
  • Rugged and dependable performance.

IR-Hot Air Module

  • Uniformly spread of hot air.
  • Fast oxidation of aqueous content.
  • Independent blowers for faster drying.
  • Compact and effective.

Class- E UV Lamp-heads

  • Air- cooled UV drier- 120 watts/cm.
  • Intensity switching for setting
  • appropriate power use.
  • Auto hibernation for power saving.
  • Auto UV hood raise for fire safety.
  • High speed drying upto 10000 sph.




COATING CIRCULATION TOWER

  • Optional
  • Enclosed coating circulation.
  • Diaphragm pump.
  • Auto flush for fast change over.
  • Quick connectors
  • Full Automatic circulator as optional extra
Model ALFX65 ALFX80
Max Sheet Size 720 X 1020 (Portrait) 1020 X 120 (Landscape & Portrait)
Paper Thickness (130GSM- 600GSM with optional Air-Knife attachment)
Speed Upto 10000 SPH
Construction Type Heavy Duty with Helical gears for main drivetrain
Drive AC Drive for precise speed control
Standard Features High Pile, Photocell based Sheet Counter,
Paper-jam Sensor, Speed display, etc...
Coating Pump Coating Circulation Tower with Diaphragm type Pump.
Application Aqueous, UV, Playing Card high slip coating, Blister coatings, PU etc....
Options Becker’s Feeder Pump, Jet Air Drier, etc...
General Suitable for handling high volume offline coating jobs in full and strip
Model ALRC72 ALRC102
Max Sheet Size 30" width 40" width
Paper Thickness 130GSM - 600GSM
(200GSM- 600GSM with optional Air-Knife attachment)
Speed Upto 5000SPH with VFD type speed controller
Application Aqueous, UV, Playing card high slip coating, Blister coatings, etc.
Options Air knife for thin paper coating, various drier options etc.
General Suitable for handling small to medium offline coating jobs in full and strip.
Paper-jam Sensor, Speed display, etc...
Standard Features Sheet Counter, Strip Coating Device
Coating Pump Centrifugal type
General Suitable for handling high volume offline coating jobs in full and strip.
