M CURE UV Curing Systems

For Sheet-fed Offset Presses

  • Water Cooled
  • Shuttered for Press Safety
  • Fast Connection
  • Advanced Electronics forPrecise Control of Lamp Power
  • Advance Diagnostics for Easy Trouble Shooting
  • High Quality After Sales Support
  • User Friendly
  • Energy Efficient
UV Curing System, UV Curing Lamps
Alpna Visual offers a wide variety of UV curing systems for different applications. It is also available in different sizes and power. Alpna sells ultraviolet equipment including UV interdecks, UV curing machines, UV curing lamps, spot lamp, and flood, and focused beam lamps. Please contact us for more information about the UV curing equipment, including the pricing, installation, and availability of your requirement.
Alpna Visual Packaging Aids
Contact Details:

Main address:
A-106, DDA Sheds, Okhla Industrial Area, Phase-II,
110020
New Delhi, India

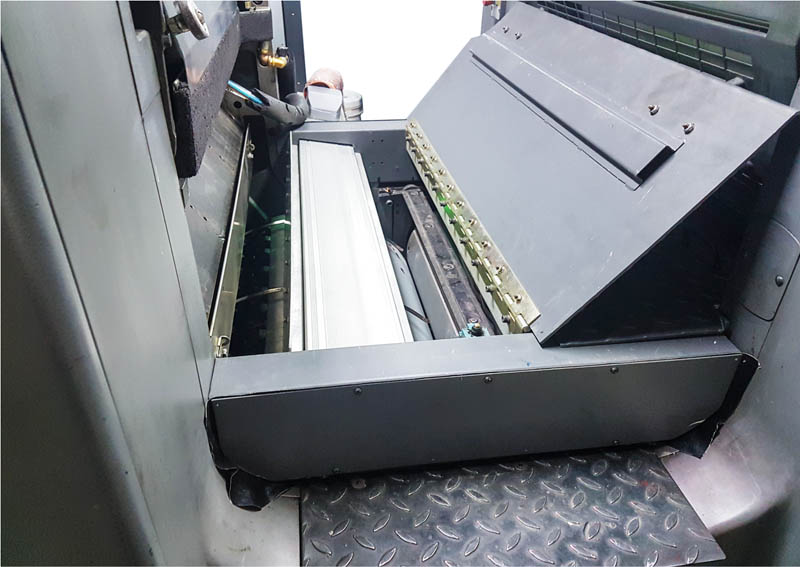

Water Cooled UV Lamp-Heads

  • Specially designed for Sheet-fed presses, Flexible design for different Presses.
  • Shuttered UV lamp head.
  • Ratings: 120- 200 watts/cm.
  • Di-Chroic coated COLD MIRROR for heat sensitive substrates available as optional upgrade.
  • Minimal heating of the substrate and press due to enhanced water-cooling and excellent heat management (Eight water channels dissipating heat)
  • The lamp head ensures minimal contamination by allowing cooling air over the lamp only.
  • At standby, the lamp will remain ON at very low power with closed shutters.
  • Available in any length up to 2000mm (80 inches).
  • Flood or focused UV output option.
  • The exceptionally compact design utilizes quick release air / water couplings and a single quick release plug for power and control.

Cassette mounted Air Exhaust
Automatic Shutter Control Synchronized with Impression and speed Cassette mounted Air Exhaust
Cutting Edge Design-Compact yet
Powerful, Safe and Efficient

Electric Panel

  • MS steel construction duly powder coated
  • Procured from well-known brand like
    'RITTAL, SCHNEIDER'.
  • Thermal protection.
  • Air cooled.

Electronic Power Supply (EPS)

EPS has substantial advantages over conventional
Transformer type power supply like-

  • High Efficiency
  • Low Power Consumption
  • Runs on Three Phases
  • Fast Switching Time
  • Step-less Control of UV lamp from 10-100%
  • Various Models from 2kw - 34kw

Heat Extraction Systems

Water Cooling System

High efficiency chiller especially designed for UV applications for minimum power consumption and effective cooling procured from GWK, Germany.

Air-Cube

  • Heat and ozone gas extraction system
  • Air-Cube encases blowers that generate
    cool air while extracting harmful ozone
    from working room.
  • All air pipes managed for
    clutter free shop floor.
  • Cleaner working environment.
  • Easy to maintain
  • Compact in size.
  • Nearly noise less

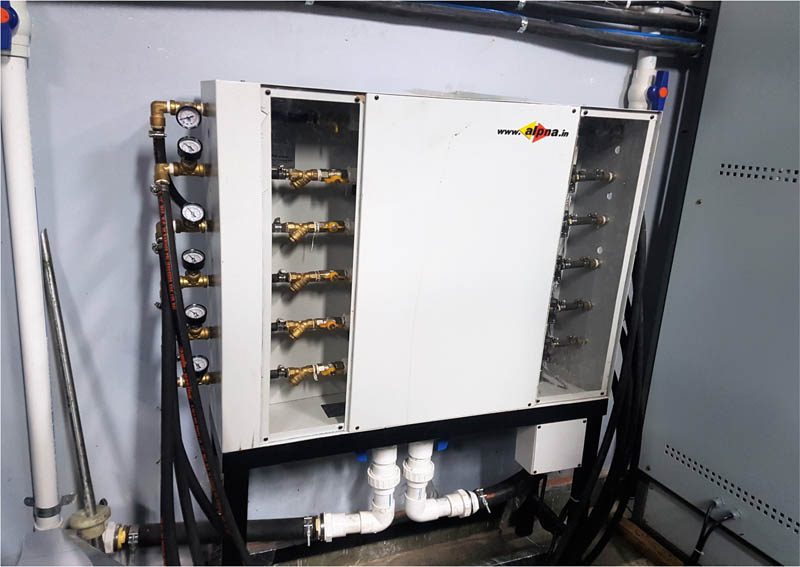

Water Distributor

  • Water distributor for independent cassettes.
  • Built in fault detection for flow/pressure etc...
  • Thermal switching for over heat detections.
  • Cleaner working environment.
  • Easy to maintain.
  • Compact in size.

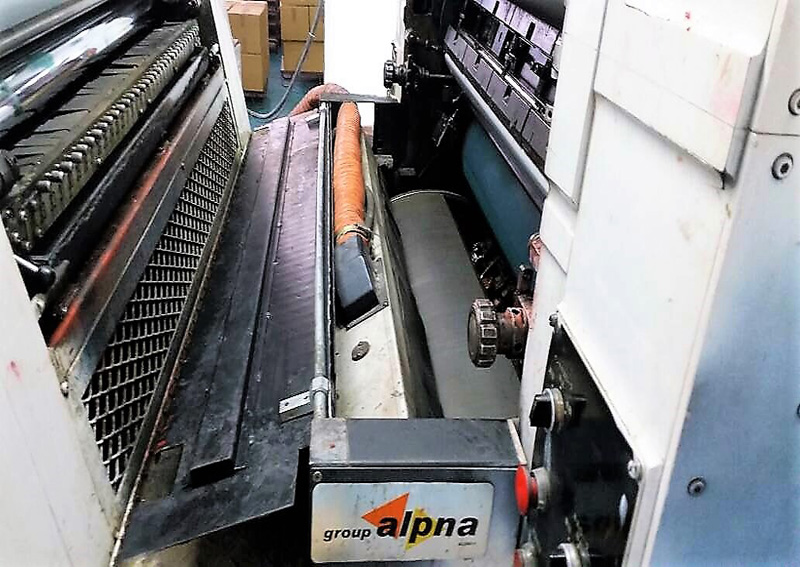

Seamless Integration

  • All platform and mounting parts designed & made using advanced techniques hence require minimum drilling/cutting to main press .
  • Retrofitted covers are electronically interlocked to provide optimum safety.
  • Special care is taken to keep harmful UV radiation enclosed away from human exposure.

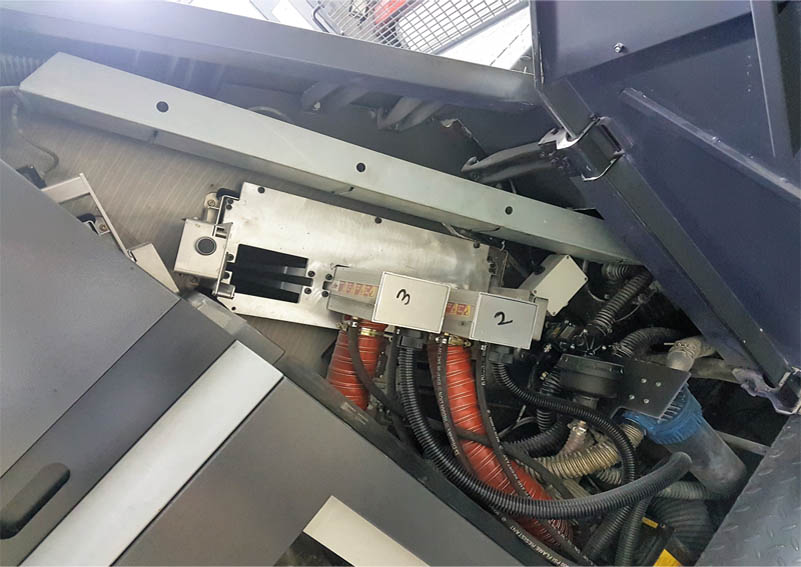

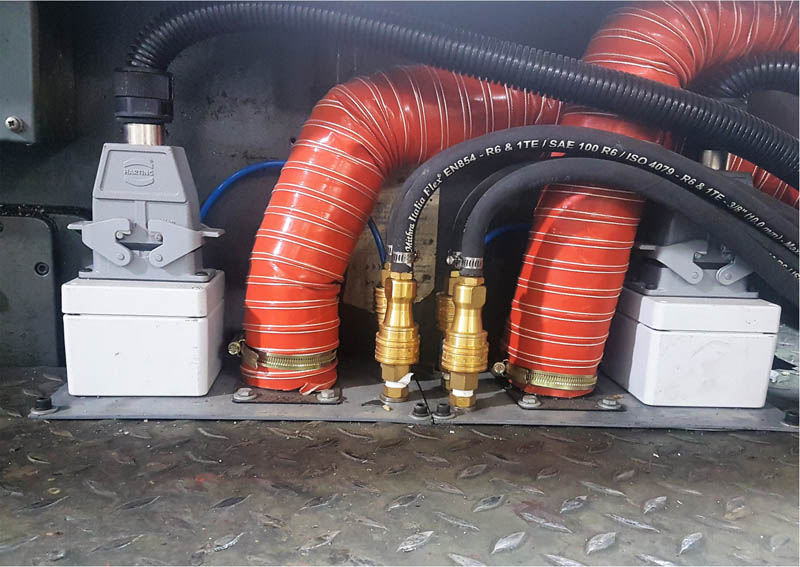

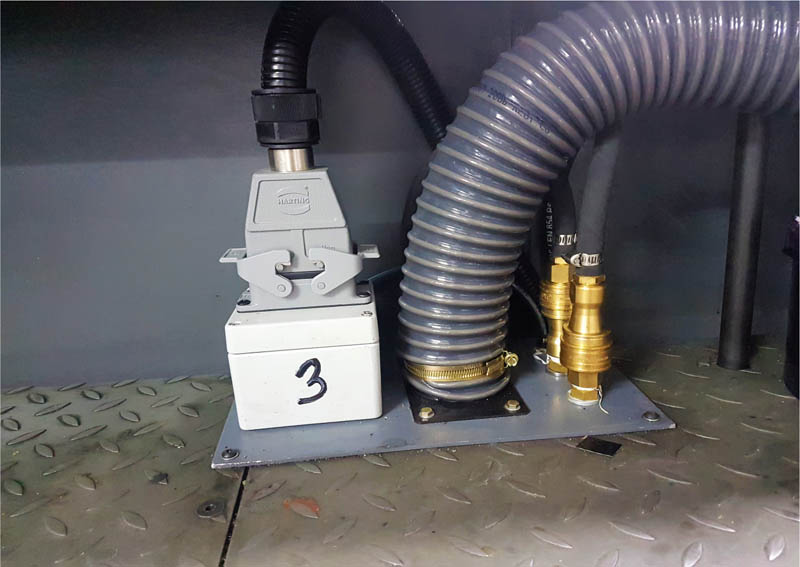

Quick Connections

  • M-CURE is equipped with quick connectors for faster shifting of UV cassettes from one station to other and easier maintenance.
  • Zero failure quick water connector from NITTO, Japan
  • High quality electrical connectors from HARTINGS, Germany.

Safety & Security

  • Minimum heat buildup in the press.
  • All covers provided with safety interlocks.
  • Water chiller is equipped with fault feedback - HP, LP, Pressure, Flow, Water level, etc...
  • Centralized user interface to see systems health.

Advanced Diagnostics

  • The system using advance fault diagnostic and fault detection system
  • All fault indicate on touch screen interface for easy detection and corrections.
  • Fault can be rectified by a remote server with Internet connectivity.
